| *고객의 요구에 따라 변경 될 수 있음. |
|
◈ |
GENERAL DESIGN DESIGN DATA
| ▶ MAXIMUM
WORKING PRESSURE--------------------------- |
3,045PSI (210Bar) |
| ▶ MAXIMUM
PROOF PRESSURE ----------------------------- |
4,567PSI (315Bar) |
| ▶ MINIMUM
BURST PRESSURE ------------------------------ |
11,417PSI (787Bar) |
| ▶
OPERATING TEMPERATURE(Buna/Nitrile) ------------------ |
-20° to + 200° F (-28° to
93°C) |
| ▶ STANDARD
SEAL MATERIAL FOR PETROLEUM BASE OIL. |
| ▶ SEALS
AVAILABLE FOR OTHER FLUIDS. |
|
| |
| Model
Number |
gas capacity
|
FLUID CAPACITY |
DRY WEIGHT |

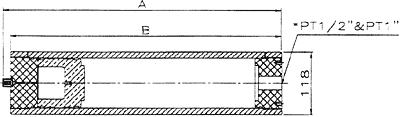

DIMENSION |
|
A |
B |
|
in³ |
Cm³ |
Gallons |
Liters |
Lbs. |
kg. |
in |
mm
|
in |
mm |
|
KPA 1-210-Ø100 |
62 |
1.006 |
.25 |
1 |
20 |
9 |
12 |
307 |
11 |
284 |
|
KPA 2-210-Ø100 |
124 |
2.012 |
.5 |
2 |
29 |
13 |
20 |
507 |
19 |
482 |
| KPA 4-210-Ø100
|
248 |
4.024 |
1 |
4 |
42 |
19 |
24 |
612 |
23 |
587 |
| KPA 6-210-Ø100
|
372 |
6,036 |
1.5 |
6 |
55 |
25 |
34 |
866 |
33 |
841 |
| KPA 8-210-Ø100
|
496 |
8,048 |
2 |
8 |
64 |
29 |
44 |
1121 |
43 |
1096 |
| KPA 10-210-Ø100
|
620 |
10,060
|
2.5 |
10 |
75 |
34 |
54 |
1375 |
53 |
1350 |
|
|
|
|
|
