ㅁ KPA 제품 > KPA 210-Ø250

*고객의 요구에 따라 변경 될 수 있음.

◈
GENERAL DESIGN DESIGN DATA
▶ MAXIMUM WORKING PRESSURE--------------------------- 3,045PSI  (210Bar)
▶ MAXIMUM PROOF PRESSURE ----------------------------- 4,567PSI  (315Bar)
▶ MINIMUM BURST PRESSURE ------------------------------ 11,417PSI (787Bar)
▶ OPERATING TEMPERATURE(Buna/Nitrile) ------------------ -20° to + 200° F (-28° to 93°C)
▶ STANDARD SEAL MATERIAL FOR PETROLEUM BASE OIL.
▶ SEALS AVAILABLE FOR OTHER FLUIDS.


Model

Number

GAS CAPACITY

FLUID CAPACITY

DRY WEIGHT

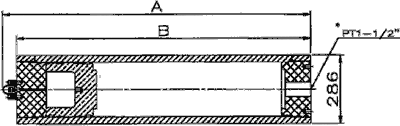

DIMENSION

A

B

In³

cm³

gallons

Liters

Lbs.

kg.

in

mm

in

mm

KPA10-250-Ø200

620

10.060

2.5

2.5

10

90

22.7

577

20.9

532

KPA20-250-Ø200

1.240

20.120

5

5

20

120

35.1

892

33.3

847

KPA30-250-Ø200

1.860

30.180

8

8

30

150

47.7

1212

45.9

1167

KPA40-250-Ø200

2.480

40.240

10.5

10.5

40

180

60.1

1527

58.3

1482

KPA50-250-Ø200

3.100

50.300

13

13

50

210

72.7

1847

70.9

1802

KPA60-250-Ø200

3.720

60.360

16

16

60

240

82.8

2105

81.1

2060

KPA75-250-Ø200

4.648

75.450

20

20

75

285

101.7

2585

100

2540

KPA90-250-Ø200

5.580

90.540

24

24

90

330

123

3125

121.2

3080

KPA100-250-Ø200

6.200

100.600

26

26

100

360

133.2

3385

131.4

3340
